epoc® Blood Analysis System

Right Result. Right Here. Right Now.
Improve outcomes and workflow while transforming care delivery across clinical pathways. The epoc® Blood Analysis System gives you lab-quality results here and now.

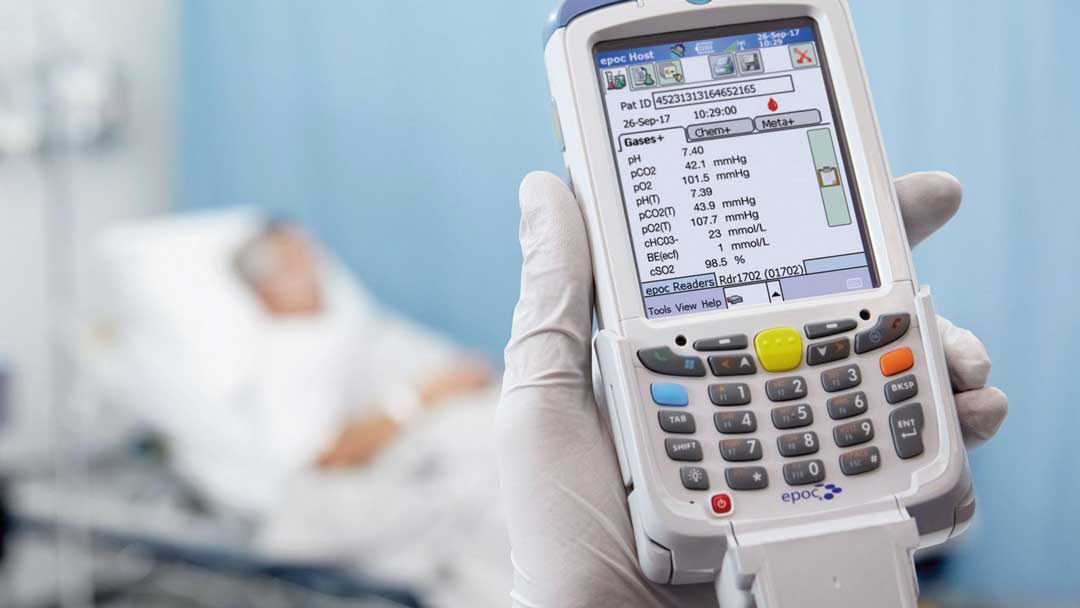

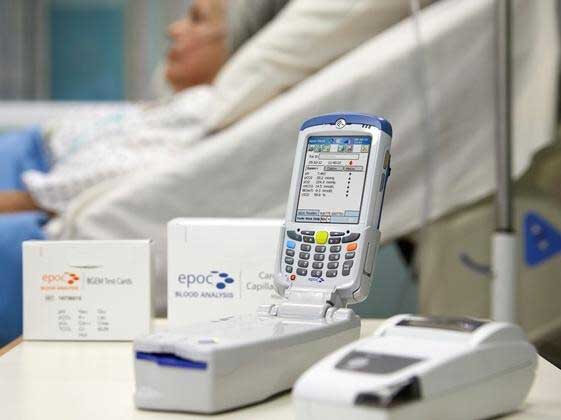

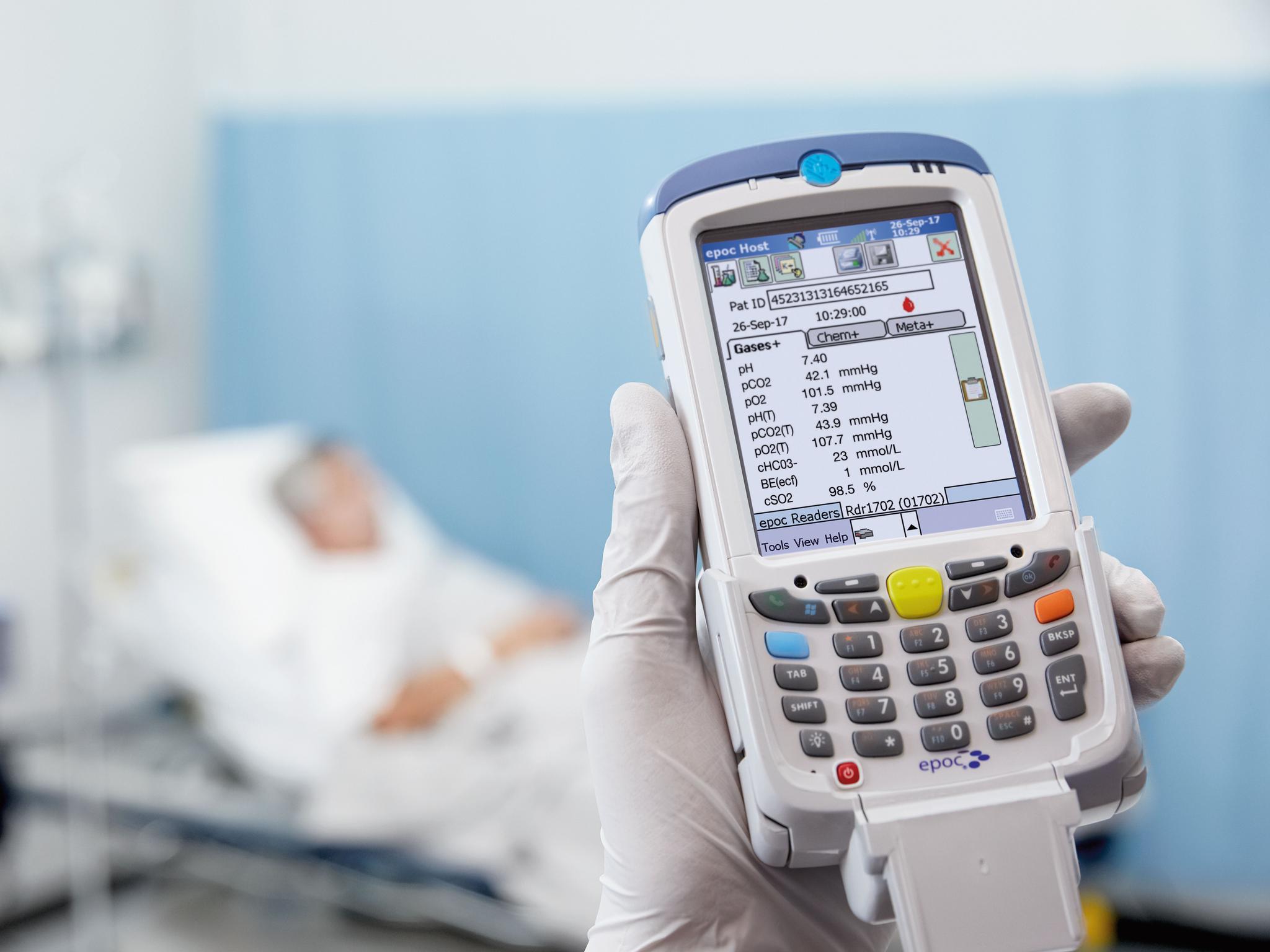

The epoc system is a handheld, wireless solution to enable comprehensive blood analysis testing at the patient’s side on a single room temperature test card, with results in less than a minute.

Accelerate clinical decision making.
Streamline patient-testing workflow.
Simplify inventory management.
Deliver real-time results and reporting.

Features and Benefits

Streamline patient-testing workflow

By moving testing to the patient’s side, caregivers, patients, and hospital administration all benefit from a less-complex testing process that improves turnaround times, patient care, and operational efficiencies.

Accelerate clinical decision making

Empower clinicians to make faster decisions with lab-quality results at the patient’s side, enhancing clinical decision making and improving patient outcomes.

Simplify inventory management.

By incorporating a full menu on a single, room temperature-stable test card bar-coded for quality assurance, the epoc system delivers a more efficient and easy-to-manage patient-side testing program.

Deliver real-time results and reporting.

Deliver real-time results and reporting

With an integrated, wireless connection, you can easily transmit results from the patient’s side to the EMR/LIS/HIS in real time and gain centralized control of decentralized testing.

epoc® Blood Analysis System

The epoc system is a handheld, wireless solution to enable comprehensive blood gas testing at the patient’s side on a single room temperature cartridge, with results in less than one minute.

The epoc Blood Analysis System provides accurate results for a full panel of critical tests on a single, room-temp stable test card in less than 1 minute after sample introduction at the patient’s side.

Empower clinicians with lab-quality results at the patient’s side, enhancing clinical decision making, improving patient outcomes and workflow to transform care delivery across clinical pathways.

The epoc system is ready to use whenever and wherever you need it. This truly portable system provides fast, accurate test results to the clinician at the patient’s side, enabling faster therapeutic action.

Clinical Data

Test results from the epoc® system correlate with leading point-of-care benchtop blood gas and chemistry analyzers.

Measured Parameters

Parameter	Unit of Measure	Measurement Range
pH	pH units	6.5–8.0
pCO₂	mmHg	5-250
	kPa	0.7-33.3
pO₂	mmHg	5–750
	kPa	0.7–100
TCO₂	mmol/L	5-50
	mEq/L
Na+	mmol/L	85–180
	mEq/L
K+	mmol/L	1.5–12.0
	mEq/L
Ca++	mmol/L	0.25–4.00
	mg/dL	1.0–16.0
	mEq/L	0.5–8.0
Cl-	mmol/L	65–140
	mEq/L
Hct	% PCV	10–75
	L/L	0.10–0.75
Glu	mmol/L	1.1–38.5
	mg/dL	20-700
	g/L	0.20-7.00
Lac	mmol/L	0.30–20.00
	mg/dL	2.7–180.2
	g/L	0.03–1.80
Crea	mg/dL	0.30–15.00
	μmol/L	27–1326
BUN	mg/dL	3-120
Urea	mmol/L	1.1-42.8
	mg/dL	7-257
	g/L	0.07-2.57

Calculated Parameters

Parameter	Unit of Measure	Measurement Range
cHgb	mmol/L	2.0-15.5
	g/dL	3.3-25
	g/L	33-250
cHCO₃-	mmol/L	1-85
	mEq/L
cTCO₂	mmol/L	1-85
	mEq/L
BE(ecf)	mmol/L	30 – +30
	mEq/L
BE(b)	mmol/L	-30 – +30
	mEq/L
cSO₂	%	0-100
GFRmdr*^†	mL/min/1.73m²	2–60 or >60
GFRmdr-a*^†	mL/min/1.73m²	2–60 or >60
GFRckd^‡	mL/min/1.73m²	1-225
GFRckd-a^‡	mL/min/1.73m²	1-225
GFRswz^§	mL/min/1.73m²	1-275
AGap	mmol/L	-14 – +95
	mEq/L
AGapK	mmol/L	-10 – +99
	mEq/L
BUN/Crea	mg/mg	0.2-400.0
Urea/Crea	mmol/mmol	0.8-1615.4
	mg/mg	0.4-856.8
A	mmHg	5-800
	kPa	0.67-106.64
A-a	mmHg	1-800
	kPa	0.13-106.64
a/A	%	0-100
	fraction	0-1
